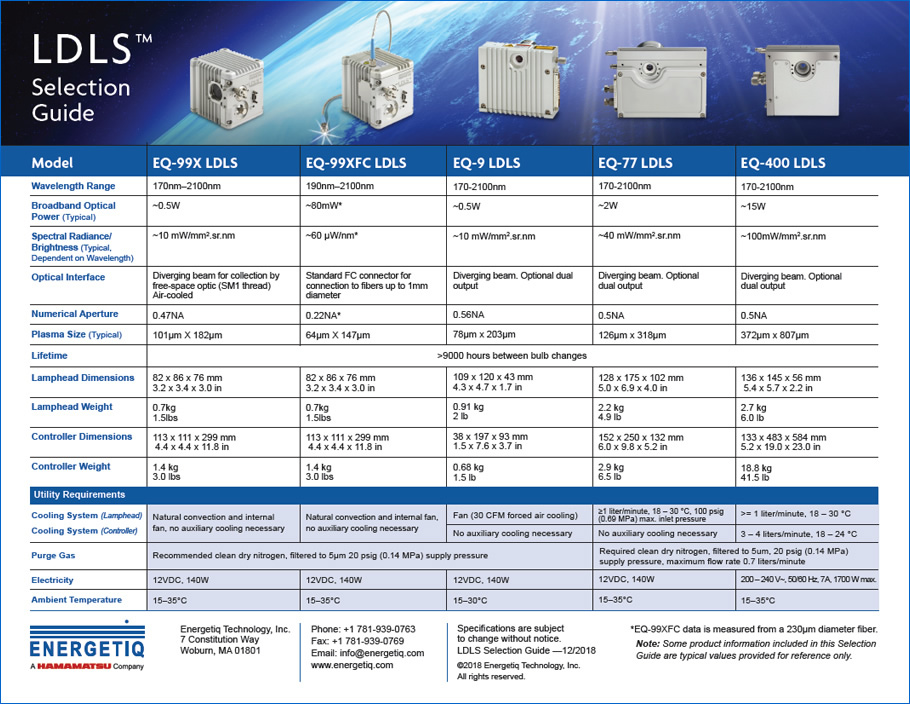

LDLS® Selection Guide
With a variety of products available, it's important to choose the Laser-Driven Light Sources that will deliver the best performance for your application. Use our LDLS selection guide to compare specifications of each Energetiq LDLS product.
Get the full product comparison and determine which Energetiq LDLS is right for you. Complete the form to get your copy!

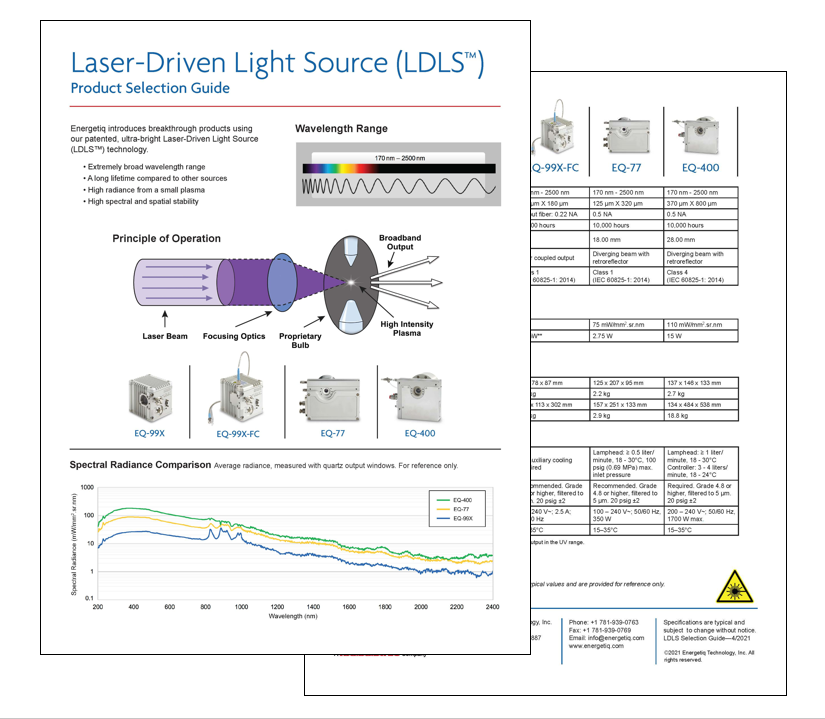

Get the complete selection guide
Properties
| EQ-99X | EQ-99X-FC | EQ-77X | EQ-400 | |
|---|---|---|---|---|
|
Wavelength Range |
170 nm – 2500 nm
|
190 nm – 2500 nm
|
170 nm - 2500 nm
|
170 nm - 2500 nm
|
|
Plasma Size (Typical) |
100 µm X 180 µm
|
100 µm X 180 µm
|
125 µm x 320 µm
|
370 µm x 800 µm
|
|
Numerical Aperture |
0.47 NA
|
Output fiber: 0.22 NA
|
0.5 NA
|
0.5 NA
|
|
Lifetime (hours between bulb changes) |
10,000 hours
|
10,000 hours
|
10,000 hours
|
10,000 hours
|
|
Distance of Plasma from Ouput Window* |
20.1 mm
|
N/A
|
13.7 mm
|
19 mm
|
|
Optical Interface |
Diverging beam
|
Fiber coupled output
|
Diverging beam with retroreflector
|
Diverging beam with retroreflector
|
|
Laser Class |
Class 1
(IEC 60825-1: 2014) |
Class 1
(IEC 60825-1: 2014) |
Class 1
(IEC 60825-1: 2014) |
Class 4
(IEC 60825-1: 2014) |
*Average
Typical Performance
| EQ-99X | EQ-99X-FC | EQ-77 | EQ-400 | |
|---|---|---|---|---|
|
Spectral Radiance at 500 nm |
25 mW/mm².sr.nm
|
N/A
|
75 mW/mm².sr.nm
|
110 mW/mm².sr.nm
|
|
Broadband Optical Power* |
0.75 W
|
95 mW**
|
2.75 W
|
15 W
|
*Measured with thermopile; **UVFIBERX-230 fiber optic cable
